RA Cores Flat Foamie Series

Over the last couple of years we have been involved in local indoor flying and have built several indoor planes from plans on the internet. We also carry EPP foam to supply to the local fliers for them to build them as well. We offer full laser cut kits for various designs. Starting with our interpretation of the Leadfeather Yak55 from rcgroups and including our 34" EPP Spitfire kit, our EPP ME-109 kit , our EPP P-51D kit and our kit of Leadfeather's 3D Delta. Our newest offering is a Mini version of the Leadfeather Yak55 in the 22" size, perfect for those smaller gymnasiums and yet perfectly at home outdoors.

Painted versions now shipping

Click to Enlarge

An online version of our illustrated instructions with "click to enlarge" color images
EPP

Go To Home Page

Go To Order Form

Contact Us

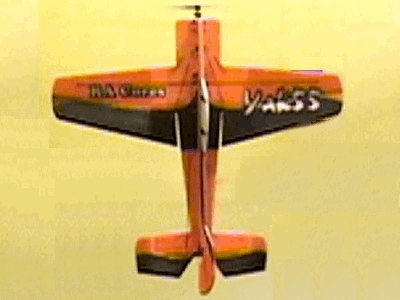

Showing all sides of the paint job on our painted kits. (actual plane in flight extracted from video)
Click to View 9 year old Evan flying his Dad's Yak55 on YouTube	Click to View John Glezellis flying Scott's Depron Yak55 Video on YouTube	Click to View a video of Jessie Russell comparing our 32" EPP vs Depron Yak55 kits on YouTube

There is a discussion thread on RCGroups about these kits and giving building and setup hints people have discovered. It's a great place to ask questions about them.

Robert Viskil at SDParkFlyers.com reviewed our 9mm Yak55 kit
(Click here for Yak55 Video Review)

We are offering the following versions:

(Please note that painted planes can take about a week to ship as we don't stock all colors all the time but will do them as needed)

We have been taking a limited number of Bind and Fly Yak55s to area shows for sale. Please email us for color availability and to reserve yours and check our show schedule to see where we will be next. We are sorry but these are not available for shipment due to dimensional weight costs.

32" 9mm 1.3# EPP Version

This is the typical version of the plane flown. It has the light weight and great handling characteristics and yet the EPP foam gives it some resilience to the bumps and less than perfect landings seen when learning new maneuvers. It is fully capable of 3D maneuvers and can be flown indoors or outdoors and yet can be toned down to be grown with and into. This is not a self-righting trainer airplane but it is a great option for learning more advanced tricks and a fun companion indoors over the winter that will move outdoors with you in spring.

Everything you need to build the 32" 9mm Yak55 in one place.

The 9mm EPP Yak55 YouTube video playlist.

Lightweight 32" 6mm 1.3# EPP Version

Flat Foamie Series 32" 6mm EPP lightweight Yak55

This version uses 6mm EPP foam is lighter than our 9mm EPP version and has floaty flight characteristics. The airframe builds about 25 grams lighter which in turn allows you to use a lighter motor (we used a 17g pancake style motor in our videos) and 350mah 2S batteries for an overall reduction of about 40-50 grams in flying weight. Lighter flies better. it is a whole different plane even though the parts are all the exact same layout. The carbon stiffens the wing and the plane has good characteristics. The EPP is forgiving but the thinner foam isn't as tolerant to bumps as it's 9mm sibling. This is a fun option for intermediate 3D practice indoors.

The 6mm EPP Lightweight Yak55 YouTube video playlist.

Mini 22" 6mm 1.3# EPP Version

This version shrinks the popular Yak55 to a 67% size that allows it to be used in a smaller indoor venue while retaining all the great Leadfeather Yak55 qualities. With the power system we sell the weight comes in under 90g and using 180mah 2S batteries you get a great flying plane for small gymnasiums for the winter that is fully capable of flying outdoors in the better weather. We have also shrunken our standard paint scheme and they are available in the same rainbow of colors popular with our standard 32" Yak55s.

Everything you need to build the 22" Mini Yak55 in one place.

The 6mm EPP Mini Yak55 YouTube video playlist.

Flat Foamie Warbird Series

34" EPP Spitfire

The Spitfire has always been one of my favorite planes and it never seems to get as much exposure as it deserves with the popularity of P-51 Mustangs as a model subject. We have put the ease of keylocked foam construction and the simplicity of flat foamies into a well performing version of this WWII classic. With our standard completer kit below you can get unlimited vertical performance and the great profile of the elliptical wing of the Spitfire. We have remained true to the outlines of the plane while moving the hingelines to give great control in the air. As with our other models, our Spitfire instructions

are supplied in paper form with the kit but are also available on the website with expanding color pictures of all the steps for clarity.

The EPP Spitfire YouTube video playlist.

This kit uses the Standard 9MM EPP completer below.

Click to Enlarge

EPP ME-109

The Battle of Britain foe of the Spitfire was the ME-109. We have produced a model of similar size and characteristics to our Spitfire. We have put the ease of keylocked foam cunstruction and the simplicity of flat foamies into a well performing version of this WWII classic. With our standard completer kit below you can get unlimited vertical performance and the great profile of the ME-109. We have remained true to the outlines of the plane while moving the hingelines to give great control in the air. As with our other models, our ME-109 instructions are supplied in paper form with the kit but are also available on the website with expanding color pictures of all the steps for clarity.

The EPP ME-109 YouTube video playlist.

This kit uses the Standard 9MM EPP completer below.

Click to Enlarge

EPP P-51D

The Mustang P-51D is a favorite of modelers and we are producing our version of the model Leadfeather designed in 2009. He designed it to have some 3D capabilities giving the modeler a plane that not only looks great but can be flown as more than just your typical circle flyer. We have put the ease of keylocked foam cunstruction and the simplicity of flat foamies into a well performing version of this WWII classic. With our standard completer kit below you can get unlimited vertical performance and the great profile of the P-51D. As with our other models, our P-51D instructions are supplied in paper form with the kit but are also available on the website with expanding color pictures of all the steps for clarity.

The EPP P-51D YouTube video playlist.

This kit uses the Standard 9MM EPP completer below.

Click to Enlarge

Completer Packs
For your one stop shopping experience we offer the motor, servos and ESC needed to finish the kit ready for your battery and receiver.

Standard 9mm EPP or 6mm Depron completer, $39.95 each. Quantities Limited. We reserve the right to make equivalent product substitutions when availability requires.

The package currently includes:: hexTronik 24gram Brushless Outrunner 1300kv; TURNIGY Plush 10amp 9gram Speed Controller; HXT900 9g / 1.6kg / .12sec Micro Servo (qty 1 - Aileron); HXT500 5g / .8kg / .10sec Micro Servo (qty 2 - Rudder & Elevator)

Click to Enlarge

Lightweight 6mm EPP Completer, $44.95 each. Quantities Limited. We reserve the right to make equivalent product substitutions when availability requires.

The package currently includes:: HobbyKing 2310 Brushless Outrunner 2250KV (17g); TURNIGY Plush 10amp 9gram Speed Controller; HXT900 9g / 1.6kg / .12sec Micro Servo (qty 1 - Aileron); HXT500 5g / .8kg / .10sec Micro Servo (qty 2 - Rudder & Elevator)

Please note that this motor is for 2S battery operation only.
3S will burn it out.

Picture of the Lightweight completer set

Click to Enlarge

Mini 6mm EPP completer, $39.95 each. (2S battery and 6x3 prop recommended) Quantities Limited. We reserve the right to make equivalent product substitutions when availability requires.

The package currently includes:: C1822 Micro brushless Outrunner 2100kv (14g); TURNIGY Plush 6A /.8bec/6g Speed Controller; New Power 5g Servo (qty 1 - Aileron); New Power 3.7g Servo (qty 2 - Rudder & Elevator); Completer comes with both JST and UMX 2S battery connectors

(these components used standard JR/Fut compatible connectors)

Click to Enlarge

Additional Prop Saver O-Rings. Std for the Standard Completer and Mini for the Lightweight and Mini completers. $1 per bag of 10.

GWS DD8040 props used with 3S on our 9mm EPP Yak55s, our Warbird Series, BluFOs and Mini Gremlins. $1.50 each

Colors may vary. We try to purchase black or gray but sometimes we have to get orange until they come back in stock.

Click to Enlarge

GemFan Direct Drive 6X3 inch Black Props used with 2S on our 6mm EPP Mini Yak55s. $1.00 each

Colors may vary. We try to purchase Black when possible. We find these fit the built in prop saver on our completer better than the GWS props which need reaming. The GemFan props do not.

Click to Enlarge

Battery Connector for the ESC side compattible with the UMX 2S batteries for use on the Mini Yak55. One connector is included in each Mini Yak55 completer. These are in case you need to make a charging harness or adapter. $2.00 each

Click to Enlarge

Construction Materials

Foam-Finish coats and protects all types of foam. Can be sanded to create a smooth surface for paint or decals. One part system fills in imperfections. Makes foam stronger without adding significant weight. Easy to apply, cleans up with water while still wet. Dries to a hard and water-resistant finish.

$9.00 per 8oz jar.
Quantities Limited.

Beacon Foam-Tac An excellent glue for bonding Carbon Fiber, EPP and Depron planes. Can be used to make a living EPP or Depron hinge. Stays flexible unlike foam safe CA. Now available in 2oz bottles, 1oz tube or the 6-pack of the new 5ml tubes (1.014oz total).

$9.00 per 2oz bottle,
$6.00 per 1oz tube,
or
$6.00 for a package of six 5ml (Mini) tubes .
Quantities Limited.

Hobby Coat protective coating and sealer protects almost any surface with a clear, semi-gloss finish. Easy to apply, Hobby Coat is non-toxic with a low odor. Hobby Coat is great for hobbies, crafts, gifts, home decor and many other applications. Hobby Coat also adds minimal weight to projects, just a protective shine.

Listen to my interview for the RCGroups 2015 Toledo Show Podcast talking about uses for it here

$7.00 per bottle.
Quantities Limited.

Blenderm premium medical tape by 3M which is great for making hinges. Recommended for Depron hinging.

$3.50 per roll.
Quantities Limited.

Scrollable Customer Image Gallery
(click image to display full size)
